Advantages: advanced structural design, excellent crushing ability, terrific reliability and low production and operation costs.

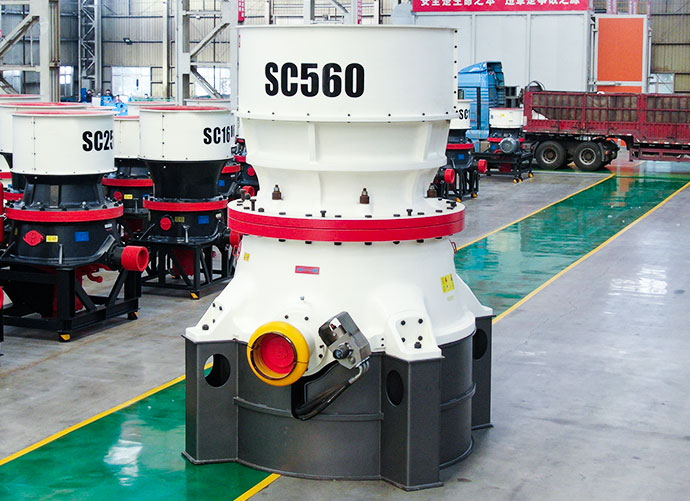

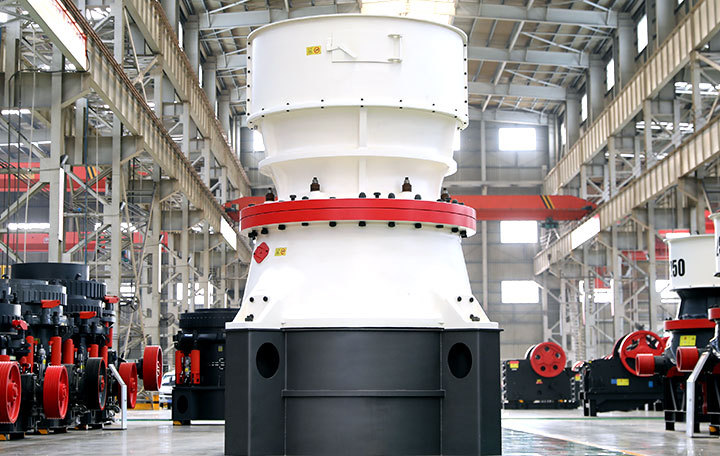

CONTACT USSingle-cylinder hydraulic cone crusher has advanced structural design, excellent crushing ability, terrific reliability and low production and operation costs. Through single hydraulic cylinder lifting cone, it realizes the functions of discharge port adjustment, cavity cleaning, iron through and overload protection, etc; equipped with electronic intelligent discharging port control system, it realizes more functions of production process control and operation optimization.

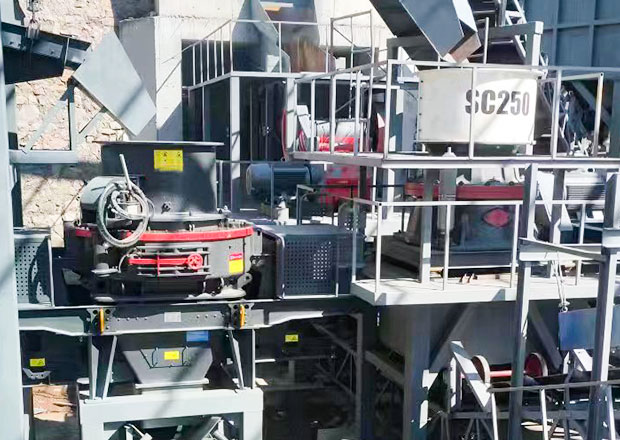

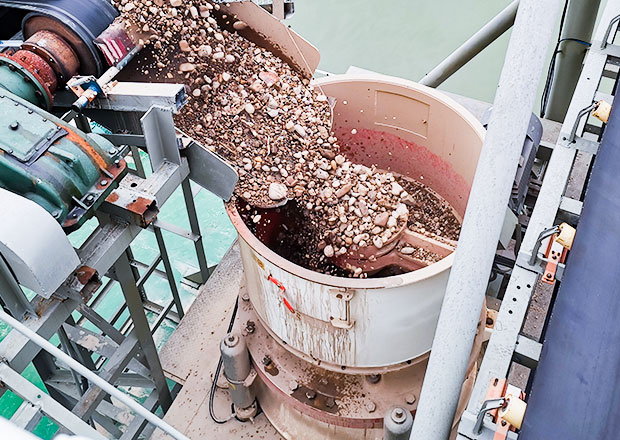

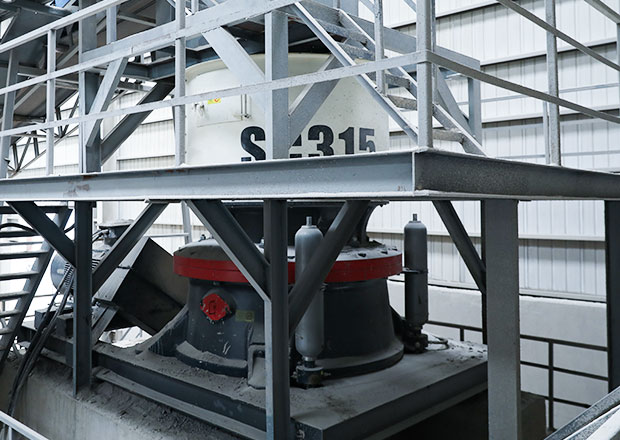

Single-cylinder hydraulic cone crusher is used for the crushing of various ores and rocks with medium and above hardness in metallurgy, construction, road construction, chemical, silicate and other industries. It has the features of large crushing ratio, high efficiency, low energy consumption, and uniform product granularity, etc.
The perfect combination of crushing stroke, crushing speed and shape of the crushing cavity, makes the yield of this hydraulic crusher higher by 35% to 60% than the old-type the spring cone crusher in the case of the same diameter of the big end of the dynamic cone.
A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
CONTACT US
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power （kw） | Capacity（t/h） |
| SC100S | C1 | 250 | 200 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 267-605 |
| C2 | 400 | 320 | 29 | 225-515 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power（kw） | Capacity （t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 38 | 30 | 4 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 35 | 25 | 70-90 | |||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100S | C1 | 250 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 267-605 |
| C2 | 400 | 225-515 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 38 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 35 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
