Application areas: gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

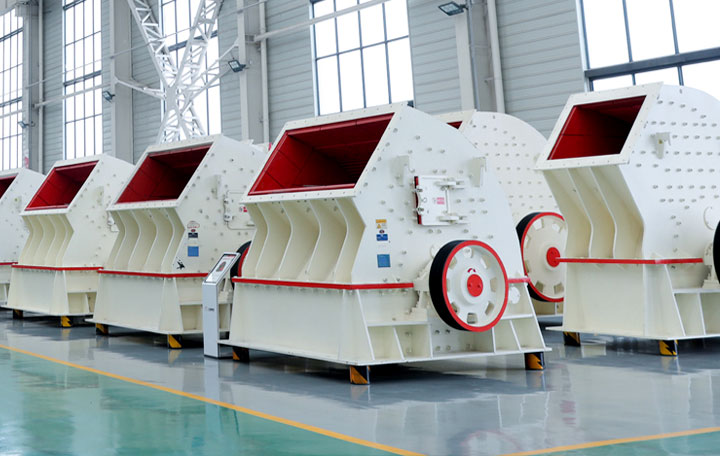

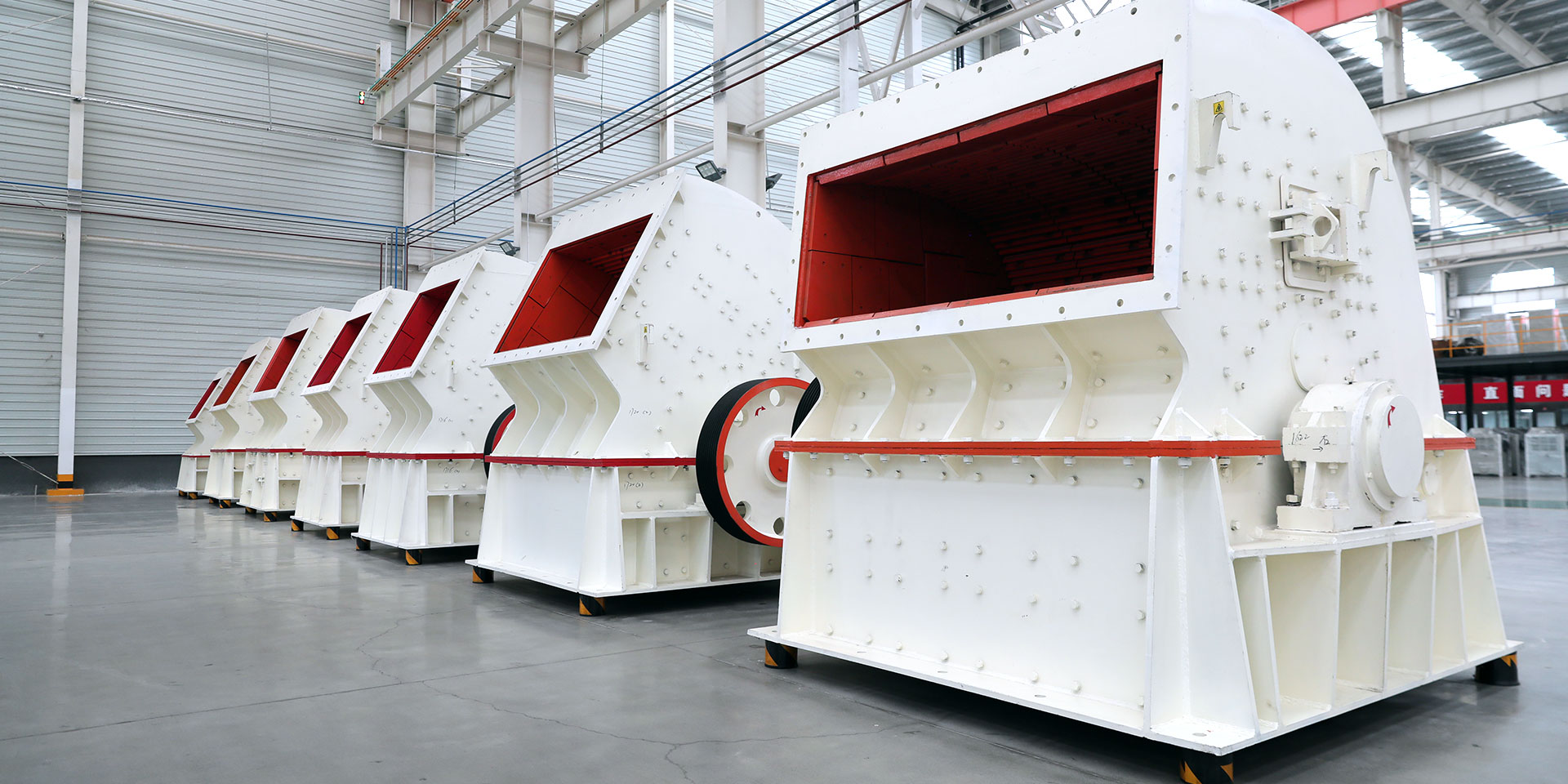

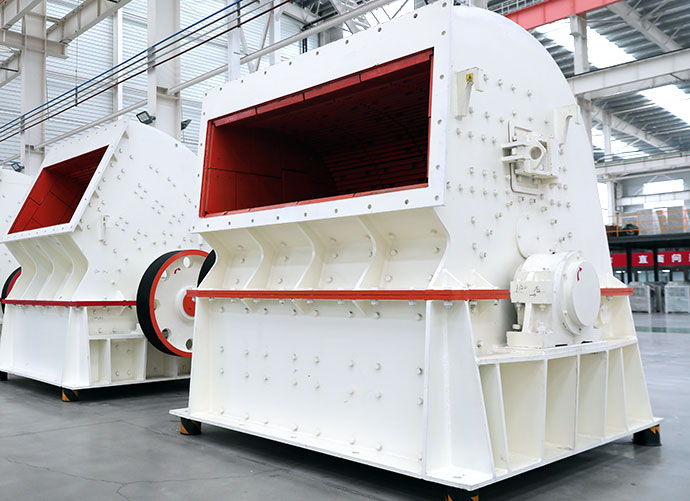

CONTACT USPCX hammer shaping crusher adopts the advanced production technology and process. It is a kind of advanced machine in the hammer crusher series in the industry, which has the characteristics of high efficiency, energy saving, and environmental protection. The machine is mainly used in cement, mining, coal preparation, power generation, chemical, and building materials industries. PCX hammer shaping crusher is widely used to crush kinds of brittle materials and materials with medium hardness, such as limestone, coal and so on.
Cost Reduced, Low Consumption:molding for one time, there is no need for secondary crushing and shaping process, so it can reduce cost by about 40%, energy consumption, and investment.
Widely Applied:it is particularly suitable for crushing limestone and stone with a compressive strength of less than 200Mpa.
High Degree of Automation:Use an external oil pump, fuel tank, pipeline lubrication system. The machine can automatically shut down when the oil temperature is too high or the oil flow rate is too slow.
| Model | Rotor diameter×Length（mm） | Feed Opening Length×Width（mm） | Feeding Size（mm） | Processing Capacity（t/h） | Power（kw） | Dimensions(L×W×H)（mm） |
| PCX 0706 | 700×570 | 618×510 | ≤150 | 30-70 | 75 | 1950×1340×1480 |
| PCX 0808 | 800×750 | 780×610 | ≤150 | 45-100 | 132 | 2280×1790×1570 |
| PCX 0910 | 900×1000 | 1070×750 | ≤200 | 70-200 | 2×110 | 2600×2200×1940 |
| PCX 1012 | 1000×1180 | 1315×900 | ≤200 | 130-300 | 2×132 | 2760×2430×2290 |
| PCX 1213 | 1260×1280 | 1430×1010 | ≤250 | 200-350 | 2×160 | 3067×2622×2580 |
| PCX 1216 | 1260×1490 | 1630×1010 | ≤250 | 230-500 | 2×200 | 3067×2832×2580 |
| PCX 1220 | 1260×1950 | 2090×1010 | ≤250 | 300-700 | 2×220 | 3067×3380×2580 |
| PCX 1622 | 1600×2150 | 2300×950 | ≤300 | 400-1200 | 2×315 | 4120×3680×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding Size（mm） | Processing Capacity（t/h） |
| PCX 0706 | ≤150 | 30-70 |
| PCX 0808 | ≤150 | 45-100 |
| PCX 0910 | ≤200 | 70-200 |
| PCX 1012 | ≤200 | 130-300 |
| PCX 1213 | ≤250 | 200-350 |
| PCX 1216 | ≤250 | 230-500 |
| PCX 1220 | ≤250 | 300-700 |
| PCX 1622 | ≤300 | 400-1200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
