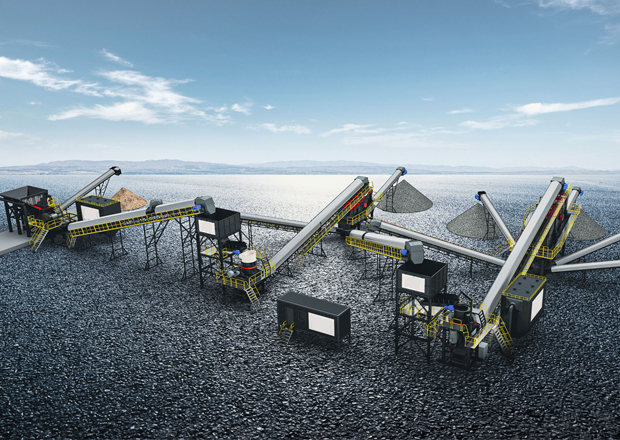

MP module factory is a new all-around solution for aggregate crushing and screening developed by FOTE Group according to the current domestic and overseas market environment.
CONTACT USMP module factory is a new all-around solution for aggregate crushing and screening developed by FOTE Group according to the current domestic and overseas market environment. It is the latest international design concept. No matter your raw materials, site conditions, finished product requirements or production cycle, the design concept of MP factory combined with the high quality main machine of FOTE Group can meet your budget and specific requirements.
All modular steel structures are produced in the factory, and the production is fast. Only a small amount of concrete foundation is needed on site, which shortens the construction period and realizes rapid production;
All structures are fabricated in the factory, and only on-site installation is required, saving the cost of personnel organization and leftover waste material for on-site fabrication;
A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
CONTACT US
| Production line code | Maximum Feed Size (mm) |
Capacity (t/h) | Main Configuration | Total Power (kw) |
Floor space (m) |
Note | |||||
| 0-5mm | 0-20mm | 0-32mm | Primary Crushing | Secondary/tertiary Crushing | Screening | ||||||
| Hard rock | MPH1 | 500 | / | 120 | 150 | MU-HDX86 | MU-SC160 | MU-HX2165 | 373 | 45×45 | |
| / | 130 | 160 | MU-HDX86 | MU-SC160 MU-HVI0926 |
MU-HX1545 MU-HX2165 |
717 | 50×70 | plastic | |||
| 100 | / | / | MU-HDX86 | MU-SC160 MU-VSIA7500 |
MU-HX1855 MU-HX2465 |
859 | 50×70 | Sand making | |||
| MPH2 | 500 | / | 180 | 220 | MU-CJ96 | MU-SC250 | MU-HX2465 | 490 | 50×50 | ||
| / | 190 | 230 | MU-CJ96 | MU-SC250 MU-VSIA7400 |
MU-HX2165 MU-HX2465 |
963 | 50×70 | plastic | |||
| 200 | / | / | MU-CJ96 | MU-SC250 MU-VSIA7800 |
MU-HX2165 MU-HX3075 |
1367 | 50×70 | Sand making | |||
| / | 230 | 350 | MU-CJ106 | MU-SC315 | MU-HX2765 | 603 | 60×60 | ||||
| MPH3 | 600 | / | 240 | 360 | MU-CJ106 | MU-SC315 MU-VSIA7630 |
MU-HX2165 MU-HX3065 |
1260 | 60×70 | plastic | |
| MPH5 | 700 | / | 400 | 520 | MU-CJ120 | MU-SC315S 2xMU-SC250 |
MU-HX2465 2×MU-HX2165 |
1290 | 70×80 | ||
| Medium hard Soft rock |
MPM1 | 500 | / | 120 | 160 | MU-HDX86 | MU-CI1110 | MU-HX1855 | 363 | 45×45 | |
| MPM2 | 500 | / | 160 | 210 | MU-CJ96 | MU-CI1213 | MU-HX2165 | 449 | 50×50 | ||
| MPM3 | 600 | / | 210 | 300 | MU-CJ106 | MU-CI1316 | MU-HX2465 | 535 | 60×60 | ||
| MPM4 | 700 | / | 320 | 400 | MU-CJ120 | MU-CI1521 | MU-HX3085 | 750 | 60×70 | ||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Production line code | Maximum Feed Size (mm) |
Capacity (t/h) |
|||
| 0-5mm | 0-20mm | 0-32mm | |||
| Hard rock | MPH1 | 500 | / | 120 | 150 |
| / | 130 | 160 | |||
| 100 | / | / | |||
| MPH2 | 500 | / | 180 | 220 | |
| / | 190 | 230 | |||
| 200 | / | / | |||
| / | 230 | 350 | |||
| MPH3 | 600 | / | 240 | 360 | |
| MPH5 | 700 | / | 400 | 520 | |
| Medium hard Soft rock |
MPM1 | 500 | / | 120 | 160 |
| MPM2 | 500 | / | 160 | 210 | |
| MPM3 | 600 | / | 210 | 300 | |
| MPM4 | 700 | / | 320 | 400 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
