HSF series bar vibrating feeder is designed according to heavy duty condition, which is suitable for feeding to crushing equipment of large and medium to primary crushing in stone materials, building materials and metallurgical mines.
The tank designed according to the heavy duty condition has strong impact resistance.
Double shaft bearing with independent oil tank, combined with pin spring bearing, Which is suitable for different installation angles.
Modular design, Universal interchangeable parts of consumables.
Bar slits can be adjusted, There is a drop between the two bars, and the material distribution is more uniform.
The second layer sorting screen can be selected to improve the utilization rate of raw materials
| Model | Trough Size (mm) |
Lendth Of The Bar (mm) |
Maximum Feeding Size (mm) |
Application | Maximum Processing Capacity (o°) |
Power (kw) |
| HSF1040 | 1000×4000 | 1×1200 | 700 | Fixed/Mobile | 400-840 | 15 |
| HSF1245 | 1200×4500 | 1×1200 | 800 | Fixed/Mobile | 500-1080 | 22 |

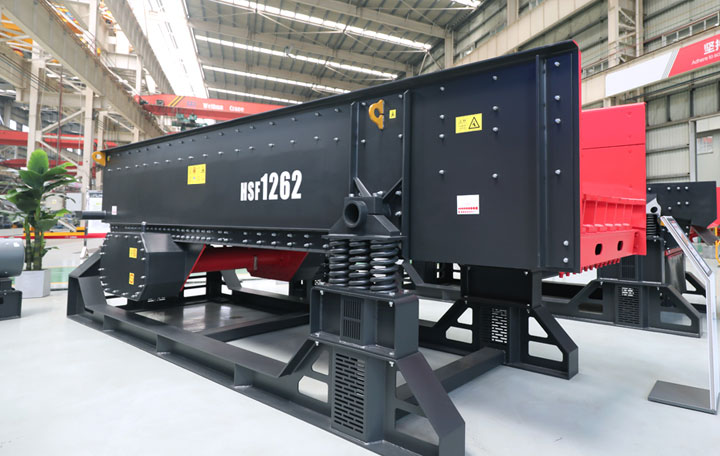

| HSF1262(S) | 1200×6200 | 2×900 | 800 | Fixed | 500-1080 | 22 |
| HSF1345 | 1300×4500 | 1×1200 | 900 | Fixed/Mobile | 750-1150 | 22 |
| HSF1362(S) | 1300×6200 | 2×900 | 900 | Fixed | 750-1150 | 30 |
| HSF1562(S) | 1500×6200 | 2×900 | 1000 | Fixed | 800-1320 | 30 |

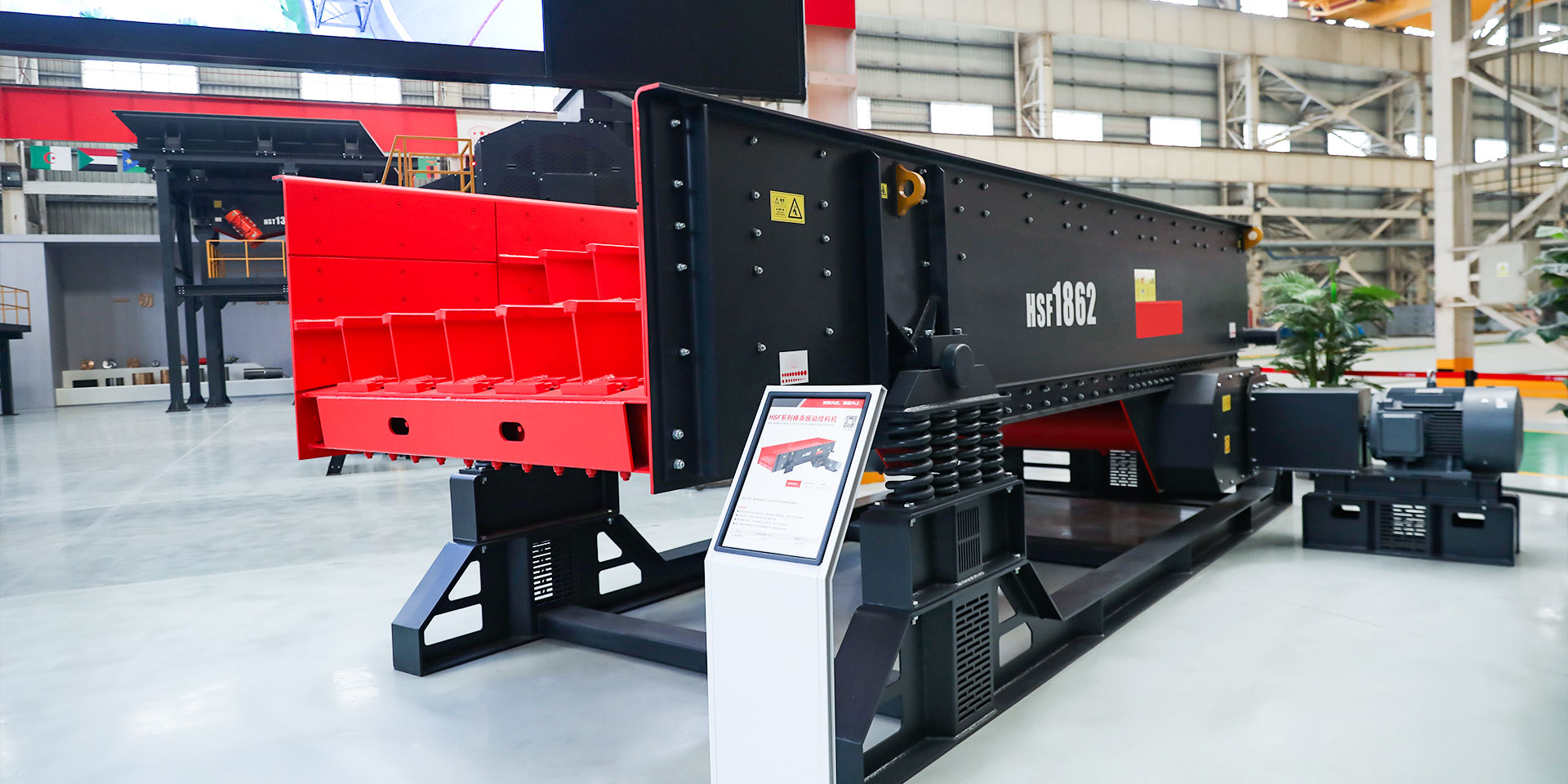

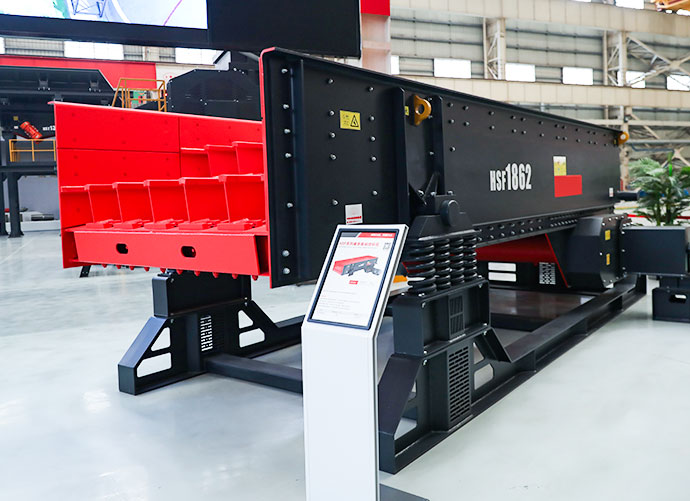

| HSF1862(S) | 1800×6200 | 2×900 | 1200 | Fixed | 1040-1560 | 37 |
| HSF2162 | 2100×6200 | 2×900 | 1500 | Fixed/Mobile | 1200-1860 | 37 |
| HSF2462 | 2400×6200 | 2×900 | 1500 | Fixed | 1360-2040 | 2×30 |
the types with （S） means you can choose additional sieve layer
| Model | Maximum Feeding Size (mm) |
Maximum Processing Capacity (o°) |
| HSF1040 | 700 | 400-840 |
| HSF1245 | 800 | 500-1080 |
| HSF1262(S) | 800 | 500-1080 |
| HSF1345 | 900 | 750-1150 |
| HSF1362(S) | 900 | 750-1150 |
| HSF1562(S) | 1000 | 800-1320 |
| HSF1862(S) | 1200 | 1040-1560 |
| HSF2162 | 1500 | 1200-1860 |
| HSF2462 | 1500 | 1360-2040 |
the types with （S） means you can choose additional sieve layer
