It is suitable for large and medium dry sand production line,and the 0.00--0.75mm powder content can be adjusted between 2%-15%.

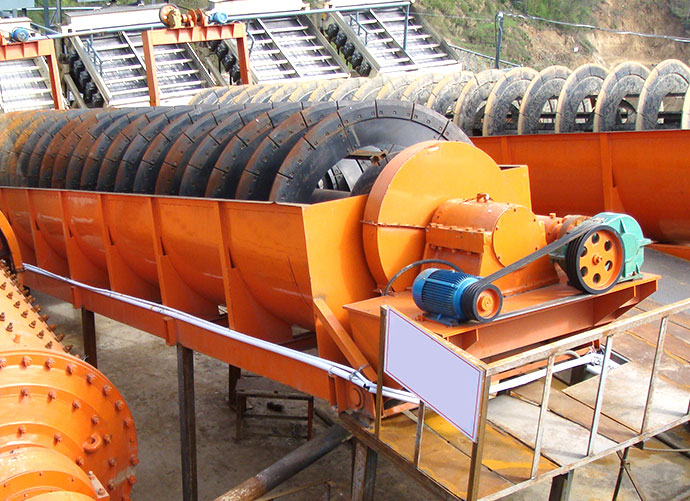

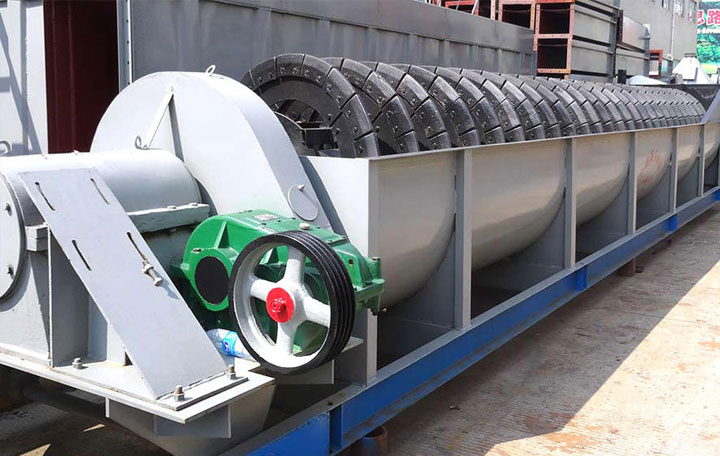

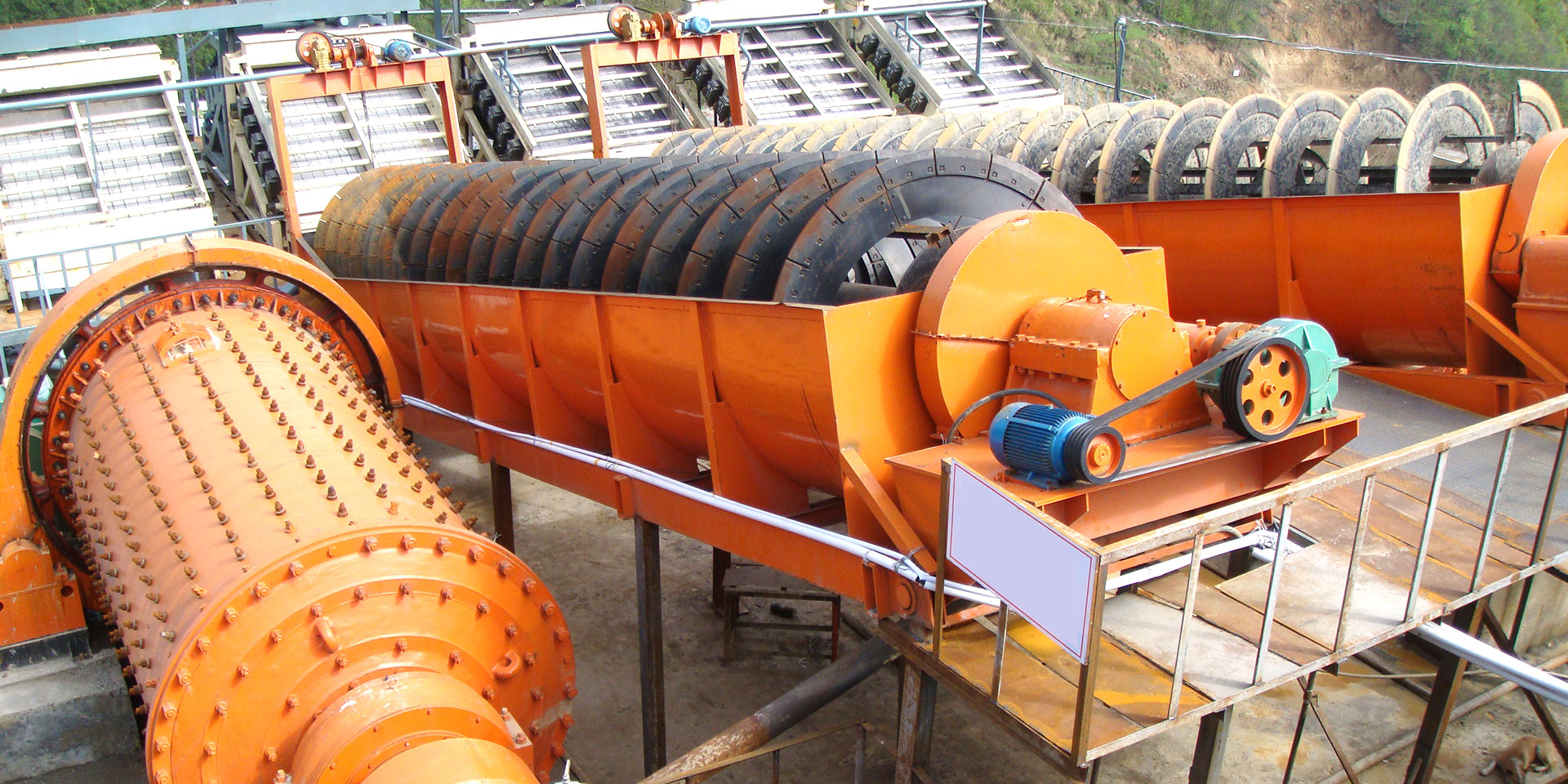

CONTACT USSpiral classifier is referred to as classifier, is one of the equipment in mineral processing. Classifier is a kind of classification device that depends on the principle--different solid particles proportion has different precipitation speed in liquid to classify minerals. It can filter out the minerals grain and powder after grinding. So that the coarse materials are screwed into the feed inlet of the mill, while the fine materials are discharged from the overflow pipe.
1. High-weir type: The top of the spiral blade of overflow side is higher than the overflow surface, and the spiral center of the overflow end is lower than the overflow surface. It is mainly used for the classification of the ore whose overflow particle size is 0.83-0.15mm.
2. Submerged type: The spiral blade of overflow side is fully immersed below the overflow surface. It is mainly used for the classification of the ore whose overflow particle size is 0.15-0.07mm.
1. Advanced technology, simple process. This equipment is advanced in technology and simple in process, especially suitable for dry-process in large and medium-scale sand production line.
2. Reliable, convenient and flexible operation. The head that into water and shaft head of screw shaft is made of pig iron sleeve, the operation is reliable. The stone powder quality is easy to control, the 0.00--0.75mm stone powder content can be adjusted between 2%-15%.
| Model | Spiral Diameter (mm) |
Trough Length (mm) |
Spiral rotate speed (r/min) |
Processing capacity（t/d） |
Motor Power （kw） |
Dimensions （mm≤） |
Total weight （t） |
||||
| Sand -return |
Overflow | For driving |
For lifting |
Length | Width | Height | |||||
| FG-3 | 300 | 3000 | 12-30 | 80-150 | 20 | 1.1 | ---- | 3850 | 490 | 1140 | 0.7 |
| FG-5 | 500 | 4500 | 8-12.5 | 135-210 | 32 | 1.1 | ---- | 5430 | 680 | 1480 | 1.9 |
| FG-7 | 750 | 5500 | 6-10 | 340-570 | 65 | 3 | ---- | 6720 | 980 | 1820 | 3.1 |
| FG-10 | 1000 | 6500 | 5-8 | 675-1080 | 110 | 5.5 | ---- | 7590 | 1240 | 2380 | 4.9 |
| FC-10 | 8400 | 675-1080 | 85 | 7.5 | ---- | 9600 | 1240 | 2680 | 6.2 | ||
| FG-12 | 1200 | 6500 | 4-6 | 1170-1870 | 155 | 7.5 | 2.2 | 8180 | 1570 | 3110 | 8.5 |
| FC-12 | 8400 | 1170-1870 | 120 | 7.5 | 2.2 | 10370 | 1540 | 3920 | 11.0 | ||
| 2FG-12 | 6500 | 2340-3740 | 310 | 15 | 4.4 | 8230 | 2790 | 3110 | 15.8 | ||
| 2FC-12 | 8400 | 2340-3740 | 240 | 15 | 4.4 | 10370 | 2790 | 3920 | 17.6 | ||
| FG-15 | 1500 | 8300 | 4-6 | 1830-2740 | 235 | 7.5 | 2.2 | 10410 | 1880 | 4080 | 12.5 |
| FC-15 | 10500 | 1830-2740 | 185 | 7.5 | 2.2 | 12670 | 1820 | 4890 | 16.8 | ||
| 2FG-15 | 8300 | 2280-5480 | 470 | 15 | 4.4 | 10410 | 3390 | 4080 | 22.1 | ||
| 2FC-15 | 10500 | 2280-5480 | 370 | 15 | 4.4 | 12670 | 3370 | 4890 | 30.7 | ||
| FG-20 | 2000 | 8400 | 3.6-5.5 | 3290-5940 | 400 | 11-15 | 3 | 10790 | 2530 | 4490 | 20.5 |
| FC-20 | 12900 | 3210-5940 | 320 | 11-15 | 3 | 15610 | 2530 | 5340 | 28.5 | ||
| 2FG-20 | 8400 | 7780-11880 | 800 | 22-30 | 6 | 11000 | 4600 | 4490 | 35.5 | ||
| 2FC-20 | 12900 | 7780-11880 | 640 | 22-30 | 6 | 15760 | 4600 | 5640 | 48.7 | ||
| FG-24 | 2400 | 9130 | 3.67 | 6800 | 580 | 15 | 3 | 11650 | 2910 | 4970 | 26.8 |
| FC-24 | 14130 | 6800 | 490 | 18.5 | 4 | 16580 | 2930 | 7190 | 41.0 | ||
| 2FG-24 | 9130 | 13600 | 1160 | 30 | 6 | 12710 | 5430 | 5690 | 45.8 | ||
| 2FC-24 | 14130 | 13700 | 910 | 37 | 8 | 17710 | 5430 | 8000 | 67.9 | ||
| 2FG-30 | 3000 | 12500 | 3.2 | 23300 | 1785 | 40 | 8 | 16020 | 6640 | 6350 | 73.0 |
| 2FC-30 | 14300 | 23300 | 1410 | ---- | ---- | 17091 | ---- | 8680 | 84.8 | ||
| Model | Spiral Diameter (mm) |
Spiral rotate speed (r/min) |
| FG-3 | 300 | 12-30 |
| FG-5 | 500 | 8-12.5 |
| FG-7 | 750 | 6-10 |
| FG-10 | 1000 | 5-8 |
| FC-10 | ||
| FG-12 | 1200 | 4-6 |
| FC-12 | ||
| 2FG-12 | ||
| 2FC-12 | ||
| FG-15 | 1500 | 4-6 |
| FC-15 | ||
| 2FG-15 | ||
| 2FC-15 | ||
| FG-20 | 2000 | 3.6-5.5 |
| FC-20 | ||
| 2FG-20 | ||
| 2FC-20 | ||
| FG-24 | 2400 | 3.67 |
| FC-24 | ||
| 2FG-24 | ||
| 2FC-24 | ||
| 2FG-30 | 3000 | 3.2 |
| 2FC-30 |
